E Bike 1.0C5A 10.5Ah DC 3.0A 18650 Li Ion Battery Pack

Brand Name : JC

Model Number : 11.1V

Certification : CE ROSH SGS

Place of Origin : China

MOQ : 10 PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3000 pcs/month

Delivery Time : 5~45 days

Packaging Details : Negotiable

Type : Lithium ion

Voltage : 11.1V

Capacity : 10.5Ah

Max discharge : 10.5A(1.0C5A）

Shelf life : 2 years

cycle time : 500 times

Warranty : one year

Cell brand : customized

Contact Now

Custom Lipo 11.1v power tool battery 10.5AH for tool devices with high discharge rate

1) Excellent high discharge rate

2.) Extra-low internal impedance

3.) Discharge in high-temperature

4.) Long cycle life and high quality

5.) Easy customized, energy density

6.) Low self-discharge etc

We can customize all kinds of lithium ion or li-polymer batteries by the requirements from customer as we have a independent R&D team and OEM/ODM is acceptable .

Custom Lipo 11.1v power tool battery 10.5AH for tool devices with high discharge rate

NO.	Items		Specifications
1	Charge voltage		12.6V
2	Nominal voltage		11.1V(3S4P)
3	Initial impedance		160mΩ
4	Nominal capacity		10.5Ah
5	Minimum capacity		10.0Ah
6	Low-temperature capacity		≥6.0Ah	When the battery is standard charged, it shall be put into chamber at ( -20±2 )℃for 8-16hrs,then discharged at 0.2C₅A (2.1A) constant current to 7.5V
7	Charge current		Standard Charging::0.2C₅A (2.1A) Rapid charge:0.5C₅A (5.25A) Max
8	Standard Charging method		2.1A(0.2C₅A) CC(constant current)charge to 12.6V,then CV(constant voltage 12.6V)charge till charge current decline to ≤105mA(≈0.01C₅A)
9	Charging time		Standard Charging:8.0hours(Ref.) Rapid charge: 3.5hours(Ref.)
10	Max.discharge current		10.5A(1.0C₅A)
11	Discharge cut-off voltage		7.50V
12	Shelf life		5 years
13	Cycle life (0.2C₅A/0.2C₅A)		300 times(≧60%DOD)
14	Operating temperature		Charging: 0℃~45℃ Discharging:-20℃~+60℃
15	Storage temperature	Less than 1 month	-10℃~+45℃		Percentage of recoverable capacity :85%
		Less than 6 month	-20℃~+35℃
16	Pack Weight		Approx:600g
17	Pack Dimension		Length: Max 82.00 mm Width: Max 72.00 mm Thickness:Max 59.00 mm
18	Other		Used in power tools

E Bike 1.0C5A 10.5Ah DC 3.0A 18650 Li Ion Battery Pack

Product Tags:

1.0C5A 18650 Li Ion Battery Pack

10.5Ah 3.0A Li Ion Battery Pack

10.5Ah ev lithium ion battery pack

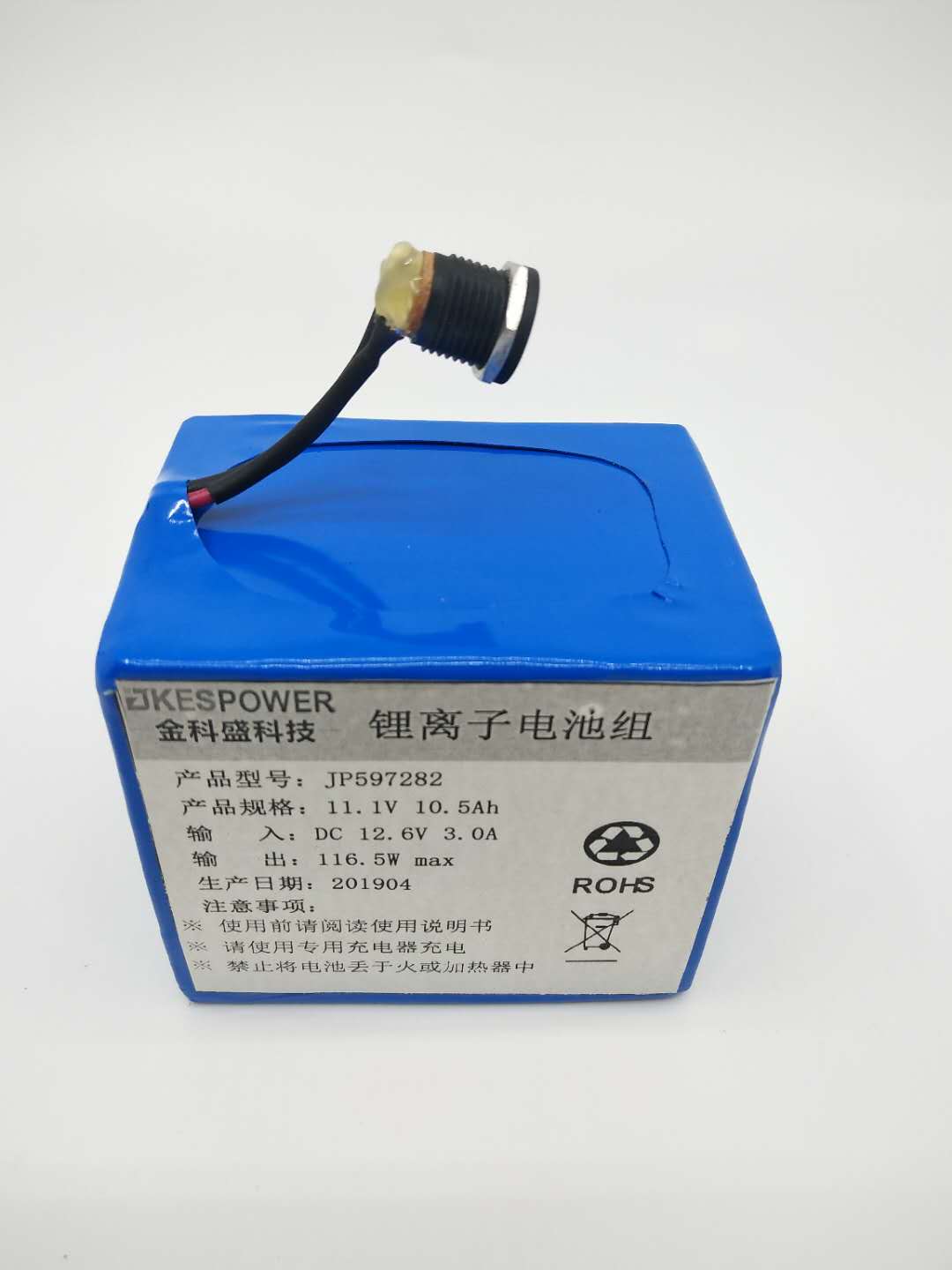

E Bike 1.0C5A 10.5Ah DC 3.0A 18650 Li Ion Battery Pack Images
